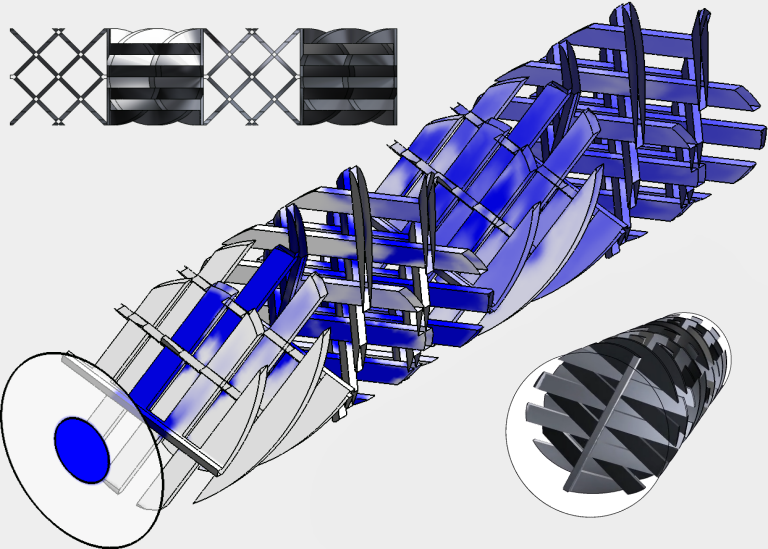

This simulation shows the mixing of a tracer using the SMX static mixer under laminar flow conditions.
The blue-white coloring indicates the mass fraction of tracer.
CFD simulation with Ansys Fluent and visualization with Ansys CFD-Post.
