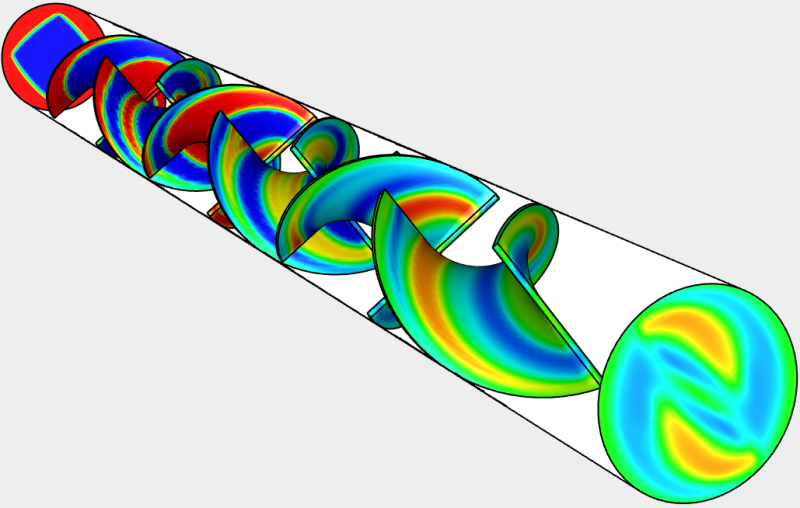

This simulation shows the concentration distribution in a Kenics static mixer with a laminar flow.
The Kenics mixer consists of a number of left and right-hand helical elements.
After passing through six elements the blue-red fluid is almost fully mixed.
CFD simulation and visualization with Ansys Fluent.
More details about this mixer can be found in Static Mixer Fundamentals and Applications.

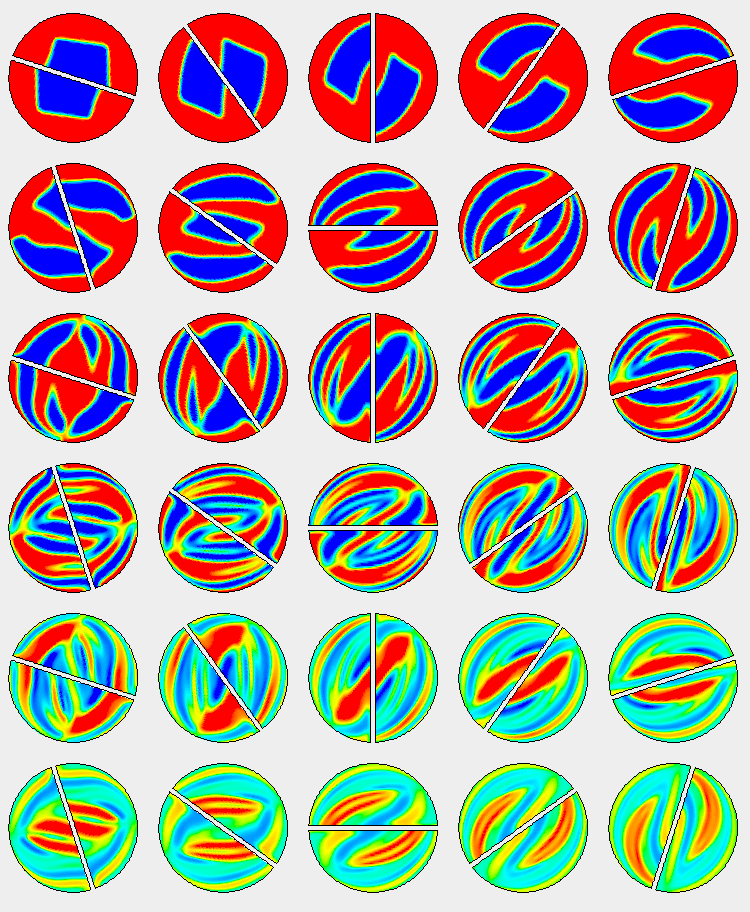

This image shows the concentration distribution in the same mixer as above in various cross
